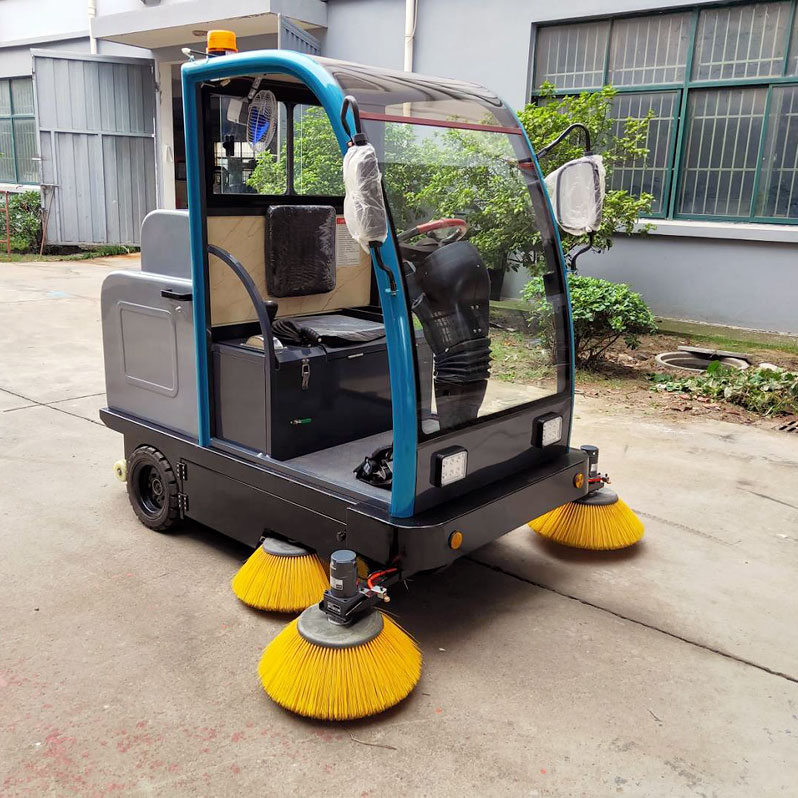

Smart-1800 Semi-enclosed Sweeper, Fully enclosed Sweeper
Smart-1800 Intelligent series sweepers are automatic cleaning all-in-one machines that combine vacuuming, sweeping and water spraying, which can be used both indoor outdoor environments depending on the demand.
This Sweeper can be used for outdoor cleaning in parks, sanitation, cleaning companies, property management companies, squares and universities.
(color based on demand)

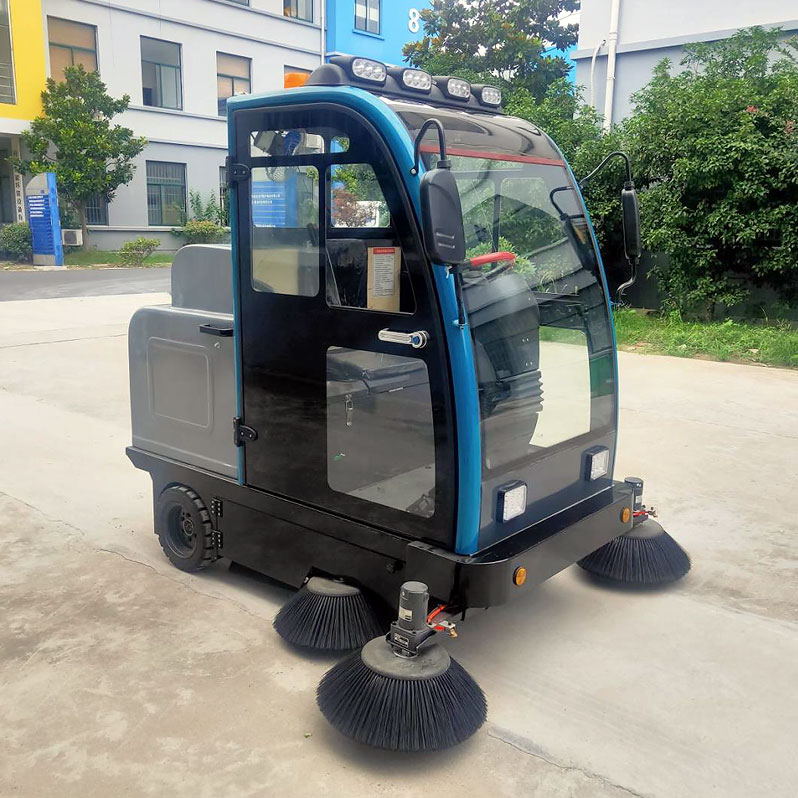

Smart-1800 Fully enclosed Sweeper
Efficiency and Feature:
1.Built-in powerful dust control system, strong vacuuming capacity, sweeping width up to 1800mm.
2.It adopts an advanced high-performance maintenance-free battery, which does not leak and does not produce harmful gases.
3.With latest proprietary “dust-suction and disposal-transfer” technology, the theoretical value of dust tank utilization can reach 100%.
4.Reliable high-quality parts effectively reduce maintenance and repair costs.
5.Solid core tires, specially designed for the “airport-type” usage, strong and durable.
6.Design adoption of latest electronic control system, allowing spike search control on over-current and under-voltage protection. Also, selection of heavier classis, larger dustbin volume.
| Smart-1800 Parameters | |||
| Sequence No | Item | Unit | Parameter |
| 1 | Width of Cleaning | mm | 1800±100 |
| 2 | Work Efficiency | m²/h | 12000 |
| 3 | Climbing Ability | % | 35 |
| 4 | Main Print Length | mm | 700 |
| 5 | Power Source (lead acid maintenance-free battery) | v | 36V/6V*6块*200AH lithium electricity optional |
| 6 | Continuous working hours | h | 6-8 |
| 7 | Dustbin capacity | L | 185 |
| 8 | Water tank capacity | L | 120 |
| 9 | Edge brush diameter | mm | 500 |
| 10 | Drive power | w | 1500 |
| 11 | Operating power (Motor) main brush + fan + side brush + vibration dust | w | 1200+600+60*4+125 |
| 12 | Turning radius | mm | 1200 |
| 13 | Maximum working speed | Km/h | 6 |
| 14 | maximum driving speed | Km/h | 8 |
| 15 | Filter area | m² | 6 |
| 16 | (L*W*H) Dimension | mm | 2100*1900*1850 |
| 17 | Brake system | / | Drum brake |
| 18 | Tire size (front wheel, rear wheel) | / | 300*100/350*100 |
| 19 | Carton material structure | mm | 2.5mm cold steel plate |
| 20 | Charging method | / | 36V30AH (portable) |
| 21 | Body housing | / | Fiberglass structure with high temperature resistance |
| 22 | Driver’s cab | Kg | Aluminum Alloy |
| 23 | weight | Kg (kilogram) | 700 |
